BAC1-009-CITV-D0-EB0X05

BAC1-009-CITV-D0-EB0X05

BAC1-009-CITV-D0

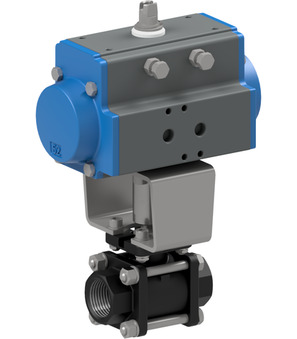

ball valve with pneumatic actuator series BAC1; female thread; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD075
EB0X05
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic

Kugelhahn mit Druckluftdrehantrieb Serie BAC1
Kugelhahn mit Druckluftdrehantrieb Serie BAC1
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 7.818 Kg
Short Itemnumber: BAC1009CITVD0EB0X05
https://www.stasto.hu/web/image/product.template/232447/image_1920?unique=e6da81e

BAC1-009-CITV-D0
ball valve with pneumatic actuator series BAC1; female thread; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD075
EB0X05
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic

954,00 € 954.0 EUR 954,00 €

ár kérésre

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
Female thread RP 2"
DN 50 mm
Length 136 mm
All specifications (8)
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
Female thread RP 2"
DN 50 mm
Length 136 mm
Design ATEX
Switch type Crouzet 831391 - ATEX
Contact material Silver-nickel
Material of case Plastic

BAC1-009-CITV-D0-EB0X05

Documents

7 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

2
English
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

2
French / Français
ZIP

Data Sheets

3

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

2
Ball valve with pneumatic actuator BAC1-009-CITV-D0
BAC1-009-CITV-D0 x 1.0 Pcs
Ball valve with pneumatic actuator BAC1-009-CITV-D0
Ball valve with pneumatic actuator Series BAC1; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; Actuator PAD075
EB0X05
EB0X05 x 1.0 Pcs
EB0X05
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831391 - ATEX; Contact material Silber-Nickel; Material of case Plastic
