Ball valve with pneumatic actuator BAC4-007-CITV-D0

Price.

439,53 €
Ball valve with pneumatic actuator Series BAC4 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - pneumatically operated
  5. Ball valve with pneumatic actuator Series BAC4
  6. BAC4-007-CITV-D0

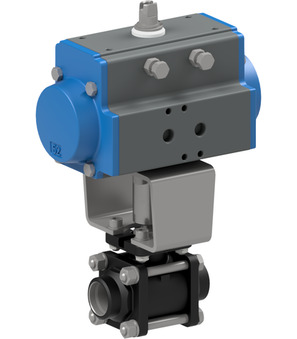

Ball valve with pneumatic actuator BAC4-007-CITV-D0
BAC4-006-CITV-D0-ABS51-C001-22-C002-31-LVCV20-1
BAC4-006-CITV-D0-ABS51-C001-22-C002-31-LVCV20-1
567,39 €
567,39 €
BAC4-007-CITV-D0-ABS51-C001-03-C002-31-6
BAC4-007-CITV-D0-ABS51-C001-03-C002-31-6
585,84 €
585,84 €

Ball valve with pneumatic actuator BAC4-007-CITV-D0

Ball valve with pneumatic actuator Series BAC4; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.62 Kg
Short Itemnumber:BAC4007CITVD0
https://www.stasto.hu/web/image/product.template/88732/image_1920?unique=58e9c00

Ball valve with pneumatic actuator Series BAC4; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Actuator PAD052

439,53 € 439.53 EUR 439,53 €

ár kérésre

  • Butt weld ends
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Butt weld ends 32 mm
DN 32 mm
Length 106 mm
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD052

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BAC4_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Ball valve with pneumatic actuator Series BAC4_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAC4007CITVD0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BAC4_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout s otočným pneumatickým pohonem série BAC4_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BAC4_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAC4_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Kugelhahn mit Druckluftdrehantrieb Serie BAC4_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BAC4_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BAC4_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BAC4_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BAC4_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BAC4_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAC4_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAC4_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BAC4_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BAC4_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BAC4_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAC4_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy z napędem pneumatycznym Seria BAC4_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BAC4_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAC4_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAC4_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAC4_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa pneumatskim aktuatorom serije BAC4_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BAC4_SV.pdf
Download
Ball valve made of steel 715000-32
715000-32 x 1.0
Ball valve made of steel 715000-32
Ball valve made of steel Series 715000; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Medium temperature -10...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
