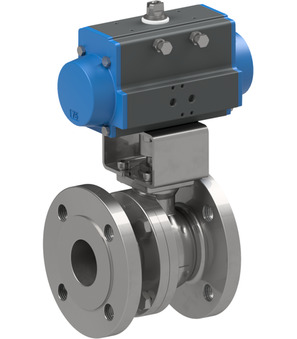

Flanged ball valve with pneumatic actuator BAEB-032-UITV-S0

Flanged ball valve with pneumatic actuator BAEB-032-UITV-S0

Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 32mm; Pressure range 0-40bar; Flange PN40; Length 130mm; Actuator PAS0635

Flanschkugelhahn mit Druckluftdrehantrieb Serie BAEB, BAEA
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAEB, BAEA
Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.19 Kg
Short Itemnumber: BAEB032UITVS0
https://www.stasto.hu/web/image/product.template/86912/image_1920?unique=d975ddd

Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 32mm; Pressure range 0-40bar; Flange PN40; Length 130mm; Actuator PAS0635

707,50 € 707.5 EUR 707,50 €

ár kérésre

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 32 mm
Flange PN40
Length 130 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 32 mm
Flange PN40
Length 130 mm

BAEB-032-UITV-S0

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

2

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

2

CAD / 3D

1
English
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

2

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

2

CAD / 3D

1
French / Français
ZIP

Data Sheets

2

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

2

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

2

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

2

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

2

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

2

CAD / 3D

1
Flanged ball valve 760001-32
760001-32 x 1.0 Pcs
Flanged ball valve 760001-32
Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 32mm; Pressure range 0-40bar; Flange PN40; Length 130mm
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
RI3525 x 1.0 Pcs
RI3525
Mounting bracket; F05/F07-F05,14-8
