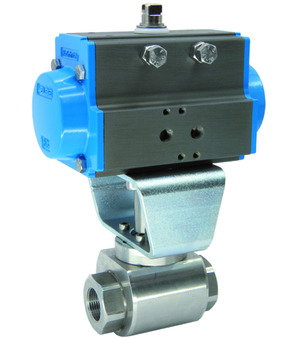

Ball valve with pneumatic actuator BAH1-002-SSKV-D0

Ball valve with pneumatic actuator BAH1-002-SSKV-D0

Ball valve with pneumatic actuator Series BAH1; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids; G 1/4"; Nominal diameter 10mm; Pressure range 0-400bar; Length 73mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Germany Made in Europe
Weight: 2.7 Kg
Short Itemnumber: BAH1002SSKVD0
https://www.stasto.hu/web/image/product.template/87902/image_1920?unique=fcc32fd

Ball valve with pneumatic actuator Series BAH1; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids; G 1/4"; Nominal diameter 10mm; Pressure range 0-400bar; Length 73mm; Actuator PAD063

649,70 € 649.7 EUR 649,70 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...400 bar
Female thread G 1/4"
DN 10 mm
Length 73 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...400 bar
Female thread G 1/4"
DN 10 mm
Length 73 mm
Brand STASTO

BAH1-002-SSKV-D0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
RKH-G1/4-104465-DFA x 1.0 Pcs
RKH-G1/4-104465-DFA
High pressure ball valve; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; For liquids; Medium temperature -20...+100°C; G 1/4"; Nominal diameter 10mm; Pressure range 0-400bar; For mounting an actuator
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
04806007007 x 1.0 Pcs
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
A4/457/04 x 1.0 Pcs
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
