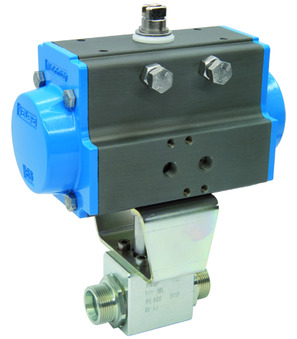

Ball valve with pneumatic actuator BAH7-30S-UCPN-S0

Ball valve with pneumatic actuator BAH7-30S-UCPN-S0

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 30S/M42x2; Nominal diameter 24mm; Pressure range 0-350bar; Length 120mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 9.7 Kg
Short Itemnumber: BAH730SUCPNS0
https://www.stasto.hu/web/image/product.template/87955/image_1920?unique=bcfc56d

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 30S/M42x2; Nominal diameter 24mm; Pressure range 0-350bar; Length 120mm; Actuator PAS1005

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 30S/M42x2
Pressure range 0...350 bar
DN 24 mm
Length 120 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Connection 30S/M42x2
Pressure range 0...350 bar
DN 24 mm
Length 120 mm
Brand STASTO

BAH7-30S-UCPN-S0

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
BKH-30S-25 11231-B0FA x 1.0 Pcs
BKH-30S-25 11231-B0FA
High pressure ball valve; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; Connection 30S/M42x2; Nominal diameter 24mm; Pressure range 0-350bar; Length 120mm; Drilled for mounting an actuator F05
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
