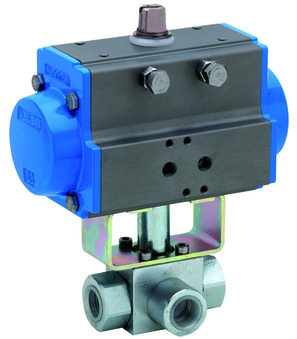

Ball valve with pneumatic actuator BAI1-006-UCPN-S0

Ball valve with pneumatic actuator BAI1-006-UCPN-S0

Ball valve with pneumatic actuator Series BAI1; Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar; G 1"; Nominal diameter 22mm; Length 113mm; Actuator PAS1005; Ball L

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 9.46 Kg
Short Itemnumber: BAI1006UCPNS0
https://www.stasto.hu/web/image/product.template/87028/image_1920?unique=bcfc56d

Ball valve with pneumatic actuator Series BAI1; Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar; G 1"; Nominal diameter 22mm; Length 113mm; Actuator PAS1005; Ball L

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Female thread
  • DN
  • Length
  • Actuator
  • Brand
  • Ball

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...350bar
Female thread G 1"
DN 22 mm
Length 113 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...350bar
Female thread G 1"
DN 22 mm
Length 113 mm
Ball L
Brand STASTO

BAI1-006-UCPN-S0

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BK3-G1-25 11231L-B0FA x 1.0 Pcs
BK3-G1-25 11231L-B0FA
High pressure ball valve; 3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Zinc plated steel; Seals POM/NBR; Medium temperature -10...+100°C; G 1"; Nominal diameter 22mm; Pressure range 0-350bar; Length 113mm; Ball L; Without hand lever; ISO-F05
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
