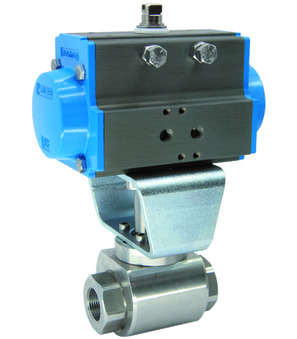

Ball valve with pneumatic actuator BAK1-006-SSKV-S0

Ball valve with pneumatic actuator BAK1-006-SSKV-S0

Ball valve with pneumatic actuator Series BAK1; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For neutral gases; G 1"; Nominal diameter 24mm; Pressure range 0-250bar; Length 113mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Germany Made in Europe
Weight: 8.2 Kg
Short Itemnumber: BAK1006SSKVS0
https://www.stasto.hu/web/image/product.template/87968/image_1920?unique=bcfc56d

Ball valve with pneumatic actuator Series BAK1; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For neutral gases; G 1"; Nominal diameter 24mm; Pressure range 0-250bar; Length 113mm; Actuator PAS1005

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...250 bar
Female thread G 1"
DN 24 mm
Length 113 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...250 bar
Female thread G 1"
DN 24 mm
Length 113 mm
Brand STASTO

BAK1-006-SSKV-S0

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

2

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

2

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

2

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

2

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

2

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

2

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
RKH-G1-254465G-DFA x 1.0 Pcs
RKH-G1-254465G-DFA
Ball valve with cover for actuator F04-SW14 PN 250, thread f/f, 1", DN25, body 1.4571 seal PEEK/FKM, for neutral gases
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
ATSV0704 x 1.0 Pcs
ATSV0704
Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F04; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
