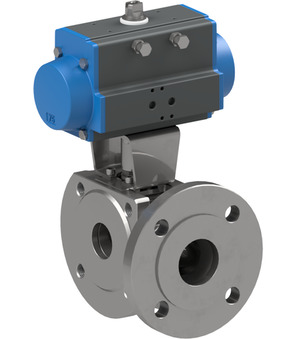

Flanged ball valve with pneumatic actuator BAUA-015-SSTV-D0B

Flanged ball valve with pneumatic actuator BAUA-015-SSTV-D0B

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 15mm; DN ball 10mm; Length 40mm; Actuator PAD052; Ball T

Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 3.583 Kg
Short Itemnumber: BAUA015SSTVD0B
https://www.stasto.hu/web/image/product.template/87251/image_1920?unique=d975ddd

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 15mm; DN ball 10mm; Length 40mm; Actuator PAD052; Ball T

904,00 € 904.0 EUR 904,00 €

ár kérésre

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • DN ball
  • Connector size
  • Ball
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 15 mm
DN ball 10 mm
Length 40 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 15 mm
DN ball 10 mm
Length 40 mm
Ball T

BAUA-015-SSTV-D0B

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve 776010-15
776010-15 x 1.0 Pcs
Flanged ball valve 776010-15
Flanged ball valve Series 776007, 776010; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 15mm; DN ball 10mm; Length 40mm; Ball T
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3012 x 1.0 Pcs
RI3012
Mounting bracket; F05/F03-F32mm; Bolt 9-7
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4603
RI4603
Diameter
52 mm
RI4617
RI4617
Diameter
52 mm
RI4645
RI4645
Diameter
52 mm
