butterfly valve with manual gear box BULA-300-DPE-G-A

Price.

1.129,80 €
Butterfly valve with manual gear box Series BULC-G Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Butterfly valves
  5. Butterfly valve with manual gear box Series BULC-G
  6. BULA-300-DPE-G-A
butterfly valve with manual gear box BULA-300-DPE-G-A
Butterfly valve with manual gear box BULC-450-DPE-G
Butterfly valve with manual gear box BULC-450-DPE-G
3.433,56 €
3.433,56 €
Butterfly valve with manual gear box BULC-350-DSE-G
Butterfly valve with manual gear box BULC-350-DSE-G
2.361,56 €
2.361,56 €

butterfly valve with manual gear box BULA-300-DPE-G-A

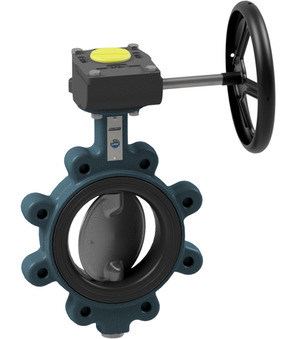

butterfly valve with manual gear box series BULA-G; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0...16bar; nominal flange pressure PN16

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.628 Kg
Short Itemnumber:BULA300DPEGA
https://www.stasto.hu/web/image/product.template/231589/image_1920?unique=4862d82

butterfly valve with manual gear box series BULA-G; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0...16bar; nominal flange pressure PN16

1.129,80 € 1129.8 EUR 1.129,80 €

ár kérésre

  • DN
  • Length
  • Design

This combination does not exist.

Availability:
Contact Us
dimension
DN 300 mm
Length 78 mm
design
Design ATEX

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Assembly and Operating Instructions
2
Assembly instruction_Butterfly valve with manual gear box Series BULC-G_EN.pdf
Download
Data sheet_Butterfly valve with manual gear box Series BULC-G_EN.pdf
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s ruční převodovkou série BULC-G_CS.pdf
Download
Montážní a provozní návody
1
Montážní předpis_uzavírací klapka s ruční převodovkou série BULC-G_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjældventil med håndgear Serie BULC-G_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Handgetriebe Serie BULC-G_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montageanleitung_Absperrklappe mit Handgetriebe Serie BULC-G_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Βαλβίδα πεταλούδας απομόνωσης με χειροκίνητο μειωτήρα ταχυτήτων Σειρά BULC-G_EL_GR.pdf
Download

ZIP
Assembly and Operating Instructions
1
Ficha técnica_Válvula de mariposa con reductor manual Serie BULC-G_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Sulkuventtiili käsivaihteella Sarja BULC-G_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne papillon avec réducteur manuel Série BULC-G_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Zaporni leptir ventil s ručnim reduktorom Serija BULC-G_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pillangószelep kézi forgatókerékkel sorozat BULC-G_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Üzembehelyezési útmutató_pillangószelep kézi forgatókerékkel sorozat BULC-G_HU.pdf
Download

ZIP
Assembly and Operating Instructions
1
Scheda tecnica_Serranda di intercettazione con riduttore manuale Serie BULC-G_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Avstengningsspjeldventil med håndgir Serie BULC-G_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Vlinderklep met handbediening Serie BULC-G_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z przekładnią Seria BULC-G_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu_przepustnica z przekładnią Seria BULC-G_PL.pdf
Download

ZIP
Assembly and Operating Instructions
1
Fișă de date_Supapă fluture cu cutie de viteze manuală serie BULC-G_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa z ročnim polžastim pogonom serija BULC-G_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo_Zaporna loputa z ročnim polžastim pogonom serija BULC-G_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa ručnom menjačkom kutijom serije BULC-G_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu_leptir ventil sa ručnom menjačkom kutijom serije BULC-G_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjällventil med handväxel Serie BULC-G_SV.pdf
Download
BULA-300-DPE-B-A x 1.0
butterfly valve with bare shaft BULA-300-DPE-B-A
butterfly valve with bare shaft series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0...16bar; nominal flange pressure PN16
Add to Cart
GB02-10/22-02
GB02-10/22-02 x 1.0
GB02-10/22-02
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
