BULC-700-DPE-G

BULC-700-DPE-G

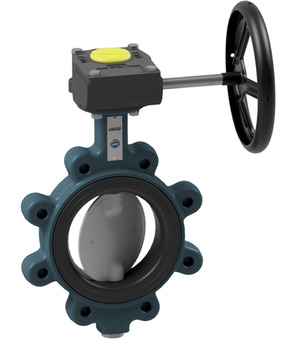

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 700mm; Length 165mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 435.416 Kg
Short Itemnumber: BULC700DPEG
https://www.stasto.hu/web/image/product.template/150754/image_1920?unique=f96ddcc

butterfly valve with manual gear box; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; nominal flange pressure PN10; medium temperature -10...+130°C; pressure range 0...10bar; DN 700mm; length 165mm

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULC-700-DPE-B x 1.0
    Butterfly valve with bare shaft BULC-700-DPE-B
    Butterfly valve with bare shaft Series BUL1-DPE-B, BULA-DPE-B, BULG-DPE-B, BULC-DPE-B, BULU-DPE-B, BULY-DPE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 700mm; Length 165mm; Pressure range 0…10bar; Nominal flange pressure PN10; Disc GGG40 verzinkt
    Add to Cart
    GB02-25/7020-01
    GB02-25/7020-01 x 1.0
    GB02-25/7020-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 5500Nm; Flange ISO5211 F25; Diameter/Key 70/20mm
