BULG-080-DSE-D22-3C
IV/00179/18
IV/00179/18
ár kérésre
IV/00181/18
IV/00181/18
ár kérésre

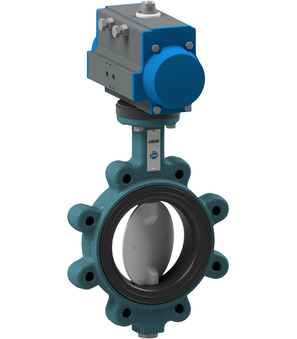

BULG-080-DSE-D22-3C

Butterfly valve with pneumatic actuator Series BULG-D, BULC-D; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Pressure range 0...10bar; DN 80mm; Length 46mm; Flange PN10/16; Actuator PAD075

Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.03 Kg
Short Itemnumber:BULG080DSED223C
https://www.stasto.hu/web/image/product.template/196097/image_1920?unique=f209afd

butterfly valve with pneumatic actuator series BULG-D, BULC-D; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; pressure range 0...10bar; DN 80mm; length 46mm; flange PN10/16; actuator PAD075

500,00 € 500.0 EUR 500,00 €

ár kérésre

  • DN
  • Length
  • Flange
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 80 mm
Length 46 mm
Flange PN10/16
pressure
Pressure range 0...10 bar
characteristics
Actuator PAD075
BULG-080-DSE-B-3C x 1.0
Butterfly valve with bare shaft BULG-080-DSE-B-3C
Butterfly valve with bare shaft Series BUL-B-3C; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 80mm; Length 46mm; Pressure range 0...16bar; Nominal flange pressure PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
Add to Cart
