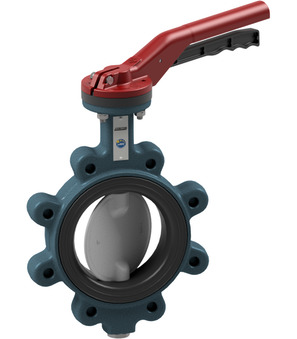

BULG-080-DSE-L-A

BULG-080-DSE-L-A

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0-16bar; Nominal flange pressure 10/16bar; ATEX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.45 Kg
Short Itemnumber:BULG080DSELA
https://www.stasto.hu/web/image/product.template/126675/image_1920?unique=d9024cc

butterfly valve with hand lever; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 80mm; length 46mm; pressure range 0-16bar; nominal flange pressure 10/16bar; ATEX

206,60 € 206.6 EUR 206,60 €

ár kérésre

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BULG-080-DSE-B-A x 1.0
Butterfly valve with bare shaft BULG-080-DSE-B-A
Butterfly valve with bare shaft Series BULG-DSE-B-A, BULC-DSE-B-A, BULY-DSE-B-A; ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0...16bar; Nominal flange pressure 10/16bar
Add to Cart
HLBU-040100-A
HLBU-040100-A x 1.0
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
