BULG-100-CSE-L-A3E

Name: BULG-100-CSE-L-A3E
Brand: STASTO
SKU: BULG-100-CSE-L-A3E

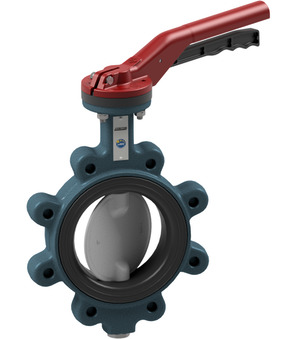

Butterfly valve with hand lever Series BULG-CSE-L-A3E; Lug type; ATEX Ex II 2GD c TX; Length According to EN558−1 R20; Body Steel 1.0619 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -29...+130°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure PN10/16; Notch impact test -29°C Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.2 Kg
Short Itemnumber: BULG100CSELA3E

butterfly valve with hand lever series BULG-CSE-L-A3E; lug type; ATEX Ex II 2GD c TX; length according to EN558−1 R20; body steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -29...+130°C; DN 100mm; length 52mm; pressure range 0...16bar; nominal flange pressure PN10/16; notch impact test -29°C incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

On request

Design
- ATEX

This combination does not exist.

Availability:

Specifications
Spare Parts

Design

ATEX

BULG-100-CSE-B-A3E x 1.0

BULG-100-CSE-B-A3E

Butterfly valve with bare shaft Series BULG-CSE-B-A3E; Lug type; ATEX Ex II 2GD c TX; Length According to EN558−1 R20; Body Steel 1.0619 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -29...+130°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure PN10/16; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
