BULG-100-CSWS-D21-A

Name: BULG-100-CSWS-D21-A
Brand: STASTO
SKU: BULG-100-CSWS-D21-A
Price: 939.8 EUR
Availability: InStock

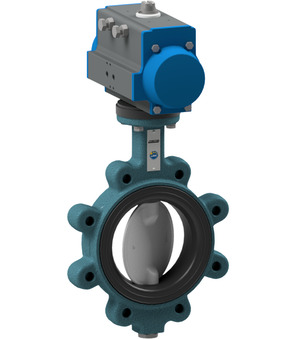

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1R20; Body Steel Epoxy coated; Disc And Shaft 1.4408; Liner EPDM/FDA; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Flange PN10/16; Actuator PAD085; ATEX Ex II 2GD c TX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.15 Kg
Short Itemnumber: BULG100CSWSD21A

butterfly valve with pneumatic actuator; lug type; length according to EN558−1R20; body steel epoxy coated; disc and shaft AISI 316; liner EPDM/FDA; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 100mm; length 52mm; flange PN10/16; actuator PAD085; ATEX Ex II 2GD c TX

939,80 € 939.8 EUR 939,80 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BULG-100-CSWS-B-A x 1.0

BULG-100-CSWS-B-A

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc And Shaft 1.4408; Liner EPDM/FDA; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure 10/16bar; ATEX Ex II 2GD c TX

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

MFFALFUAL09733 x 1.0
