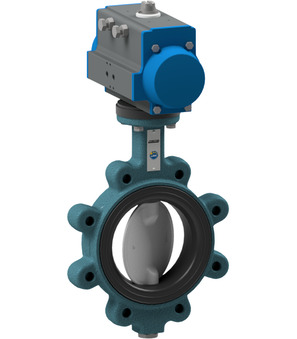

Butterfly valve with pneumatic actuator BULG-125-DSN-D22

Butterfly valve with pneumatic actuator BULG-125-DSN-D22

butterfly valve with pneumatic actuator series BULG-D, BULC-D; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 125mm; length 56mm; flange PN10/16; actuator PAD085

Absperrklappe mit Druckluftdrehantrieb Serie BULG-D, BULC-D
Absperrklappe mit Druckluftdrehantrieb Serie BULG-D, BULC-D
Absperrklappe mit Druckluftdrehantrieb Serie BULG-D, BULC-D
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 13.74 Kg
Short Itemnumber: BULG125DSND22
https://www.stasto.hu/web/image/product.template/232734/image_1920?unique=b428625

butterfly valve with pneumatic actuator series BULG-D, BULC-D; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 125mm; length 56mm; flange PN10/16; actuator PAD085

660,70 € 660.7 EUR 660,70 €

ár kérésre

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 125 mm
Length 56 mm
Flange PN10/16
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 125 mm
Length 56 mm
Flange PN10/16
Brand STASTO

BULG-125-DSN-D22

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

1
BULG-125-DSN-B x 1.0 Pcs
Butterfly valve with bare shaft BULG-125-DSN-B
Butterfly valve with bare shaft Series BULA-B, BULG-B, BULC-B, BULY-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 125mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure PN10/16
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4606
RI4606
Diameter
85 mm
RI4620
RI4620
Diameter
85 mm
RI4648
RI4648
Diameter
85 mm
