BULG-125-DSN-L

BULG-125-DSN-L

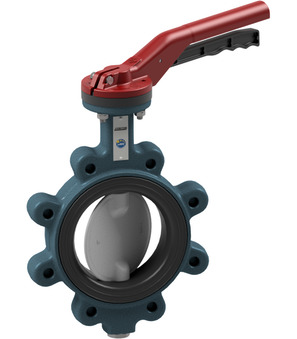

Butterfly valve with hand lever; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 125mm; Length 56mm; Pressure range 0-16bar; Flange PN10/16

Intrastat No.: 84818085
Country of origin: Italy
Weight: 10.35 Kg
Short Itemnumber: BULG125DSNL
https://www.stasto.hu/web/image/product.template/88931/image_1920?unique=24fee4a

Butterfly valve with hand lever; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 125mm; Length 56mm; Pressure range 0-16bar; Flange PN10/16

307,50 € 307.5 EUR 307,50 €

ár kérésre

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications

    Data sheets, Instructions, 3D-files and Certificates...

    In your language
    ZIP
    CAD / 3D
    1
    CADSTEP_BULG125DSNL.stp
    Download
    BULG-125-DSN-B x 1.0
    Butterfly valve with bare shaft BULG-125-DSN-B
    Butterfly valve with bare shaft Series BULA-B, BULG-B, BULC-B, BULY-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 125mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure PN10/16
    Add to Cart
    HLBU-125150-A
    HLBU-125150-A x 1.0
    HLBU-125150-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 125;150mm
