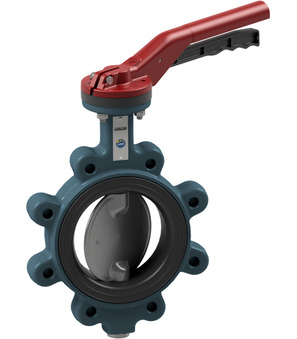

Butterfly valve with hand lever BULG-150-DSX-G

Butterfly valve with hand lever BULG-150-DSX-G

butterfly valve with manual gear box series BULG-G, BULC-G; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-peroxide cross-linked; medium temperature -10...+150°C; DN 150mm; length 56mm; pressure range 0-16bar; flange PN10/16

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Short Itemnumber: BULG150DSXG
https://www.stasto.hu/web/image/product.template/177562/image_1920?unique=23c28d6

butterfly valve with manual gear box series BULG-G, BULC-G; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-peroxide cross-linked; medium temperature -10...+150°C; DN 150mm; length 56mm; pressure range 0-16bar; flange PN10/16

643,10 € 643.1 EUR 643,10 €

ár kérésre

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 50 mm
Length 43 mm
Flange PN10/16
All specifications (5)
Pressure range 0...16 bar
DN 50 mm
Length 43 mm
Flange PN10/16
Brand STASTO
BULG-150-DSX-B x 1.0 Pcs
Butterfly valve with bare shaft BULG-150-DSX-B
butterfly valve with bare shaft series BUL-DSX-B, lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-peroxide cross-linked; medium temperature -10...+150°C; DN 150mm; length 56mm; pressure range 0…16bar; nominal flange pressure PN10/16
GB02-07/14-01
GB02-07/14-01 x 1.0 Pcs
GB02-07/14-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 14mm
