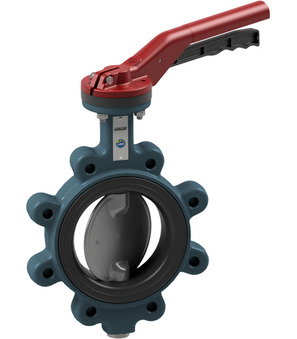

Butterfly valve with hand lever BULY-080-CSN-L-A3E01

Butterfly valve with hand lever BULY-080-CSN-L-A3E01

butterfly valve with hand lever; lug type; length according to EN558−1R20; housing carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -25...+100°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; incl. notch impact test; DN 80mm; length 46mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULY080CSNLA3E01

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.hu/web/image/product.template/175389/image_1920?unique=f96ddcc

butterfly valve with hand lever; lug type; length according to EN558−1R20; housing carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -25...+100°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; incl. notch impact test; DN 80mm; length 46mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Flange
  • Design
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 80 mm
Length 46 mm
Flange ANSI150
All specifications (5)
Pressure range 0...16 bar
DN 80 mm
Length 46 mm
Flange ANSI150
Design ATEX
BULY-080-CSN-B-A3E01 x 1.0 Pcs
Butterfly valve with bare shaft BULY-080-CSN-B-A3E01
butterfly valve with bare shaft series BUL-B-3C; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 80mm; length 46mm; pressure range 0...16bar; flange ANSI150
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
