BULY-150-DNES-T22-3H02

Name: BULY-150-DNES-T22-3H02
Brand: STASTO
SKU: BULY-150-DNES-T22-3H02

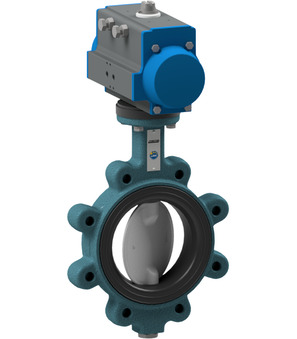

Butterfly valve with pneumatic actuator Series BULY-DNES-T22; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated C4H According to EN-ISO 12944; Disc Aluminium-bronze; Shaft 1.4401; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Nominal flange pressure ANSI150; Flange thread UNC; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAS1605-B; Safety position NO; Incl. Inspection certificate API 598 For pressure and tightness; Incl. Inspection certificate EN-10204-3.1 For material

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULY150DNEST223H02

butterfly valve with pneumatic actuator series BULY-DNES-T22; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated C4H according to EN-ISO 12944; disc aluminium-bronze; shaft AISI 316; liner EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; nominal flange pressure ANSI150; flange thread UNC; pressure range 0...10bar; DN 150mm; length 56mm; actuator PAS1605-B; safety position NO; incl. inspection certificate API 598 for pressure and tightness; incl. inspection certificate EN-10204-3.1 for material

On request

DN
- 150 mm
Length
- 56 mm
Flange
- PN10/16
Pressure range
- 0...10 bar
Actuator
- PAS1605

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	150 mm
Length	56 mm
Flange	PN10/16
pressure
Pressure range	0...10 bar
characteristics
Actuator	PAS1605

BULY-150-DNES-B-3H02 x 1.0

BULY-150-DNES-B-3H02

Butterfly valve with bare shaft Series BULY-DNES-B-3H02; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated C4H According to EN-ISO 12944; Disc Aluminium-bronze; Shaft 1.4401; Liner EPDM; Medium temperature -10...+130°C; Nominal flange pressure ANSI150; Flange thread UNC; Pressure range 0...16bar; DN 150mm; Length 56mm; Incl. Inspection certificate API 598 For pressure and tightness; Incl. Inspection certificate EN-10204-3.1 For material

Add to Cart

PAS1605-B x 1.0

PAS1605-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

APKTGB0051 x 1.0
