Butterfly valve with manual gear box Series BUW-SSR-G Store

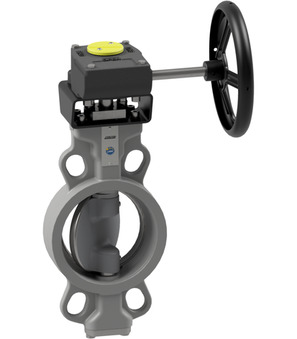

Butterfly valve with manual gear box BUW0-300-SSRQ-G

Name: Butterfly valve with manual gear box BUW0-300-SSRQ-G
SKU: BUW0-300-SSRQ-G
Price: 999999.0 EUR
Availability: InStock

Butterfly valve with manual gear box Series BUW-SSR-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 300mm; Length 78mm; Nominal flange pressure PN10/16/ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 54.324 Kg
Short Itemnumber:BUW0300SSRQG

butterfly valve with manual gear box series BUW-SSR-G; wafer type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; pressure range 0...25bar; DN 300mm; length 78mm; nominal flange pressure PN10/16/ANSI150

ár kérésre

DN
- 300 mm
Length
- 78 mm
Flange
- PN10/16, ANSI150
Pressure range
- 0...25 bar

This combination does not exist.

Availability:

dimension
DN	300 mm
Length	78 mm
Flange	PN10/16, ANSI150
pressure
Pressure range	0...25 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BUW0300SSRQG.stp

Download

BUW0-300-SSRQ-B x 1.0

Butterfly valve with bare shaft BUW0-300-SSRQ-B

Butterfly valve with bare shaft Series BUW-SSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 300mm; Length 78mm; Nominal flange pressure PN10/16/ANSI150

Add to Cart
