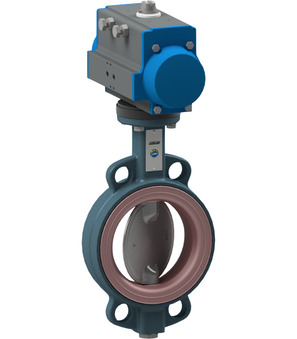

Butterfly valve with pneumatic actuator BUW2-100-DSC-D32-A

Name: Butterfly valve with pneumatic actuator BUW2-100-DSC-D32-A
Brand: STASTO
SKU: BUW2-100-DSC-D32-A
Price: 504.5 EUR
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW2-DSC-D-A; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 100mm; Length 52mm; Actuator PAD063

Intrastat No.: 84818085
Country of origin: Italy

Weight: 7.2 Kg
Short Itemnumber: BUW2100DSCD32A

butterfly valve with pneumatic actuator series BUW2-DSC-D-A; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 100mm; length 52mm; actuator PAD063

504,50 € 504.5 EUR 504,50 €

excl. tax

DN
- 100 mm
Length
- 52 mm
Design
- ATEX
Actuator
- PAD063

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...6bar
DN	100 mm
Length	52 mm
Design	ATEX

Specifications
Spare Parts

Pressure range	0...6bar
DN	100 mm
Length	52 mm
Design	ATEX

BUW2-100-DSC-B-A x 1.0 Pcs

Butterfly valve with bare shaft BUW2-100-DSC-B-A

Butterfly valve with bare shaft Series BUW2-DSC-B-A; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 100mm; Length 52mm
