BUW2-500-DPE-D1C3

Name: BUW2-500-DPE-D1C3
Brand: STASTO
SKU: BUW2-500-DPE-D1C3

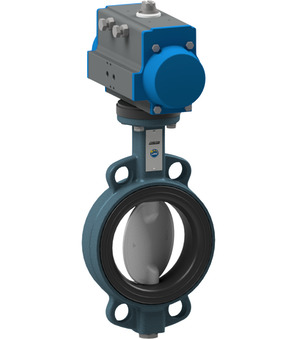

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 3,5...8bar; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 500mm; Length 127mm; Disc Zinc plated ductile iron EN-GJS-400-15; Actuator PAD200

Intrastat No.: 84818085
Country of origin: Italy
Weight: 183.85 Kg
Short Itemnumber: BUW2500DPED1C3

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 3,5...8bar; medium temperature -10...+130°C; pressure range 0...6bar; DN 500mm; length 127mm; disc zinc plated ductile iron EN-GJS-400-15; actuator PAD200

On request

Brand
- STASTO

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...6bar
Brand	STASTO

Documents

Data sheets, drawings and CAD files

Pressure range	0...6bar
Brand	STASTO

BUW2-500-DPE-D1C3

Documents

1 Documents

Language-independent

ZIP

CAD / 3D

STP
CADSTEP · BUW2500DPED1C3
CAD-STEP 14,6 MB Updated 27/09/2026

Download

BUW2-500-DPE-B x 1.0 Pcs

Butterfly valve with bare shaft BUW2-500-DPE-B

Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 500mm; Length 127mm; Disc GGG40 verzinkt; Pressure range 0…10bar; Flange PN10/16/ANSI150

PAD200 x 1.0 Pcs

Pneumatic actuator PAD200

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 1170Nm

APKTGB0032 x 1.0 Pcs
