Butterfly valve with hand lever Series BUW4-DSTS-L Store

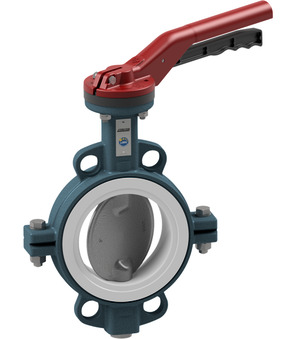

Butterfly valve with hand lever BUW4-065-DSTS-L-A

Name: Butterfly valve with hand lever BUW4-065-DSTS-L-A
SKU: BUW4-065-DSTS-L-A
Price: 608.36 EUR
Availability: InStock

Butterfly valve with hand lever Series BUW4-DSTS-L; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 65mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.45 Kg
Short Itemnumber:BUW4065DSTSLA

butterfly valve with hand lever series BUW4-DSTS-L; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 65mm; length 46mm

608,36 € 608.36 EUR 608,36 €

DN
- 65 mm
Length
- 46 mm
Design
- ATEX

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

dimension
DN	65 mm
Length	46 mm
design
Design	ATEX

BUW4-065-DSTS-B x 1.0

BUW4-065-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 65mm; Length 46mm

Add to Cart
