Butterfly valve with hand lever Series BUW6-DSV-L Store

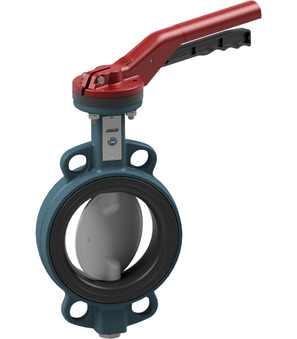

Butterfly valve with hand lever BUW6-040-DSV-L

Name: Butterfly valve with hand lever BUW6-040-DSV-L
SKU: BUW6-040-DSV-L
Price: 225.7 EUR
Availability: InStock

Butterfly valve with hand lever Series BUW6-DSV-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 40mm; Length 33mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 2.55 Kg
Short Itemnumber:BUW6040DSVL

butterfly valve with hand lever series BUW6-DSV-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 40mm; length 33mm

225,70 € 225.7 EUR 225,70 €

DN
- 40 mm
Length
- 33 mm

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

DN	40 mm
Length	33 mm

BUW6-040-DSV-B x 1.0

Butterfly valve with bare shaft BUW6-040-DSV-B

Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 40mm; Length 33mm

Add to Cart
