Butterfly valve with electrical actuator BUW6-050-DSE-01K1

Price.

597,06 €
Butterfly valve with electrical actuator Series BUW6-DSE-01 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Butterfly valve with electrical actuator Series BUW6-DSE-01
  6. BUW6-050-DSE-01K1
Butterfly valve with electrical actuator BUW6-050-DSE-01K1
Butterfly valve with bare shaft BUW6-250-DSN-D22-ABS54-C001-03-C002-31-6-EB0X01
Butterfly valve with bare shaft BUW6-250-DSN-D22-ABS54-C001-03-C002-31-6-EB0X01
2.021,28 €
2.021,28 €
Butterfly valve with electrical actuator BUW6-065-DSE-01K1
Butterfly valve with electrical actuator BUW6-065-DSE-01K1
574,50 €
574,50 €

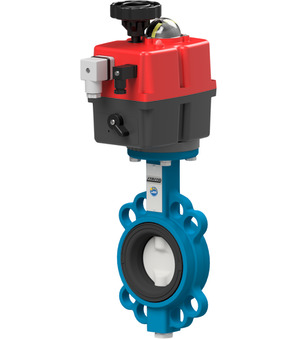

Butterfly valve with electrical actuator BUW6-050-DSE-01K1

Butterfly valve with electrical actuator Series BUW6-DSE-01; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 50mm; Length 43mm; Operating time 9s; Voltage 24...240VAC / 24...135VDC

Intrastat No.: 84818085
Country of origin: Spain
Weight: 4.73 Kg
Short Itemnumber:BUW6050DSE01K1
https://www.stasto.hu/web/image/product.template/139291/image_1920?unique=1cca27c

butterfly valve with electrical actuator series BUW6-DSE-01; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 50mm; length 43mm; operating time 9s; voltage 24...240VAC / 24...135VDC

597,06 € 597.06 EUR 597,06 €

ár kérésre

  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 50 mm
Length 43 mm
Electrical key figures
Voltage 24...240VAC / 24...135VDC
characteristics
Operating time 9 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_BUW6050DSE01K1.stp
Download
BUW6-050-DSE-B x 1.0
Butterfly valve with bare shaft BUW6-050-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 50mm; Length 43mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
Add to Cart
J4C35-0H9-Q14 x 1.0
Electrical actuator J4C35-0H9-Q14
Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 35Nm; Operating time 9s; Flange ISO5211 F03/04/05-star 14mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67
Add to Cart
