BUW6-050-DSN-D21-01

Name: BUW6-050-DSN-D21-01
Brand: STASTO
SKU: BUW6-050-DSN-D21-01

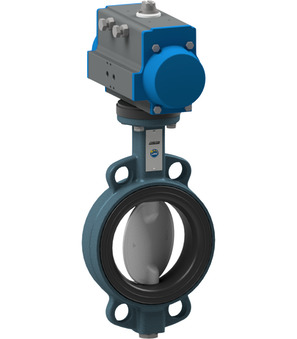

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...16bar; DN 50mm; length 43mm; actuator MT15-0DAC13;

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6050DSND2101

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BUW6-050-DSN-B x 1.0

Butterfly valve with bare shaft BUW6-050-DSN-B

Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 50mm; Length 43mm; Pressure range 0...16bar; Nominal flange pressure PN10/16/ANSI150

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

MFFALFUAL09733 x 1.0
