BUW6-050-DSN-D22-A

Name: BUW6-050-DSN-D22-A
Brand: STASTO
SKU: BUW6-050-DSN-D22-A
Price: 375.8 EUR
Availability: InStock

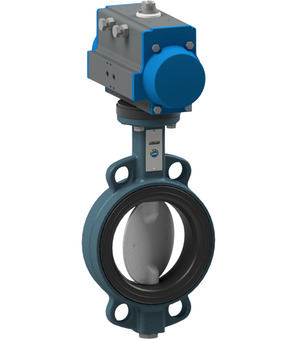

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Actuator PAD063; ATEX Ex II 2GD c TX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.45 Kg
Short Itemnumber: BUW6050DSND22A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 50mm; length 43mm; actuator PAD063; ATEX Ex II 2GD c TX

375,80 € 375.8 EUR 375,80 €

excl. tax

Design
- ATEX

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar
Design	ATEX

Specifications
Spare Parts

Pressure range	0...10bar
Design	ATEX

BUW6-050-DSN-B-A x 1.0 Pcs

BUW6-050-DSN-B-A

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 50mm; Length 43mm; Pressure range 0...16bar; Nominal flange pressure PN10/16/ANSI150; ATEX Ex II 2GD c TX
