BUW6-050-DSV-D23-A

Name: BUW6-050-DSV-D23-A
Brand: STASTO
SKU: BUW6-050-DSV-D23-A
Price: 472.0 EUR
Availability: InStock

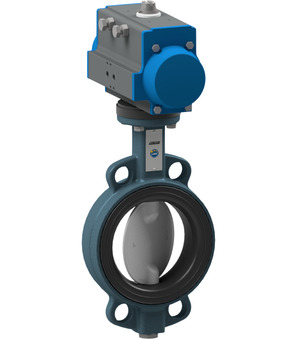

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Actuator PAD063; ATEX II 2 GD c TX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.6 Kg
Short Itemnumber: BUW6050DSVD23A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 50mm; length 43mm; actuator PAD063; ATEX II 2 GD c TX

472,00 € 472.0 EUR 472,00 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-050-DSV-B x 1.0

Butterfly valve with bare shaft BUW6-050-DSV-B

Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 50mm; Length 43mm

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

MFFALFUAL09733 x 1.0
