BUW6-065-DSD-S1D2-A

Name: BUW6-065-DSD-S1D2-A
Brand: STASTO
SKU: BUW6-065-DSD-S1D2-A
Price: 672.1 EUR
Availability: InStock

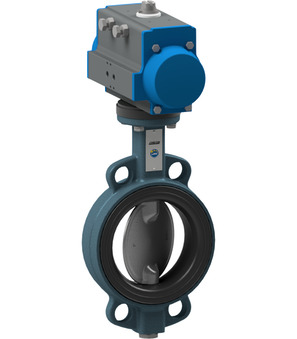

Butterfly valve with pneumatic actuator; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 4...8bar; Medium temperature -10...+60°C; Pressure range 0...16bar; DN 65mm; Length 46mm; Actuator PAS1003; ATEX zone 1 and 21

Intrastat No.: 84818085
Country of origin: Italy
Weight: 10.85 Kg
Short Itemnumber: BUW6065DSDS1D2A

butterfly valve with pneumatic actuator; wafer type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 4...8bar; medium temperature -10...+60°C; pressure range 0...16bar; DN 65mm; length 46mm; actuator PAS1003; ATEX zone 1 and 21

672,10 € 672.1 EUR 672,10 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-065-DSD-B-A x 1.0

Butterfly valve with bare shaft BUW6-065-DSD-B-A

Butterfly valve with bare shaft Series BUW6-DSD-B-A, BUW4-DSD-B-A; ATEX II 2 G/D Ex h X; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 65mm; Length 46mm; Pressure range 0...16bar

Add to Cart

PAS1003 x 1.0

Pneumatic actuator PAS1003

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 35,9Nm

Add to Cart

MFFALFUAL09733 x 1.0
