BUW6-100-DSV-0G2

BUW6-100-DSV-0G2

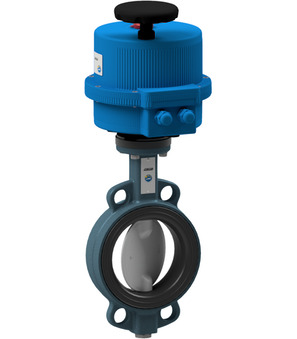

Butterfly valve with electrical actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Operating time 27s; Voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 10.55 Kg
Short Itemnumber: BUW6100DSV0G2
https://www.stasto.hu/web/image/product.template/137926/image_1920?unique=24fee4a

butterfly valve with electrical actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...10bar; DN 100mm; length 52mm; operating time 27s; voltage 100-240VAC

1.154,20 € 1154.2 EUR 1.154,20 €

ár kérésre

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-100-DSV-B x 1.0
    Butterfly valve with bare shaft BUW6-100-DSV-B
    Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 100mm; Length 52mm
    Add to Cart
    Electrical actuator VB110-H
    VB110-H x 1.0
    Electrical actuator VB110-H
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
