Butterfly valve with pneumatic actuator BUW6-100-DUE-D22

Price.

496,44 €
Butterfly valve with pneumatic actuator Series BUW6-DE-D2 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Butterfly valves - pneumatically operated
  5. Butterfly valve with pneumatic actuator Series BUW6-DE-D2
  6. BUW6-100-DUE-D22

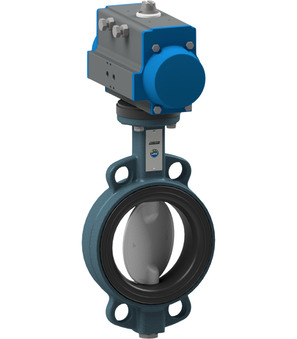

Butterfly valve with pneumatic actuator BUW6-100-DUE-D22
BUW6-080-DUE-D22-ABS54-C001-22-C002-31-LVCV20-1
BUW6-080-DUE-D22-ABS54-C001-22-C002-31-LVCV20-1
628,17 €
628,17 €
BUW6-100-DUE-D22-ABS54-C001-03-C002-31-6
BUW6-100-DUE-D22-ABS54-C001-03-C002-31-6
660,14 €
660,14 €

Butterfly valve with pneumatic actuator BUW6-100-DUE-D22

Butterfly valve with pneumatic actuator Series BUW6-DE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Disc Stahl verzinkt; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.5 Kg
Short Itemnumber:BUW6100DUED22
https://www.stasto.hu/web/image/product.template/88297/image_1920?unique=510ab1e

Butterfly valve with pneumatic actuator Series BUW6-DE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Disc Stahl verzinkt; Actuator PAD085

496,44 € 496.44 EUR 496,44 €

ár kérésre

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Disc
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us
dimension
DN 100 mm
Length 52 mm
pressure
Pressure range 0...10 bar
materials
Disc Zinc plated steel
characteristics
Actuator PAD085

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Butterfly valve with pneumatic actuator Series BUW6-DE-D2_EN.pdf
Download
Assembly and Operating Instructions
1
Assembly instruction_Butterfly valve with pneumatic actuator Series BUW6-DE-D2_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Butterfly valve with pneumatic actuator Series BUW6-DE-D2_EN.pdf
Download
CAD / 3D
1
CADSTEP_BUW6100DUED22.stp
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s otočným pneumatickým pohonem série BUW6-DE-D2_CS.pdf
Download
Montážní a provozní návody
1
Montážní předpis_uzavírací klapka s otočným pneumatickým pohonem série BUW6-DE-D2_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_uzavírací klapka s otočným pneumatickým pohonem série BUW6-DE-D2_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjældventil med pneumatisk drejedrev Serie BUW6-DE-D2_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DE-D2_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montageanleitung_Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DE-D2_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DE-D2_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Πεταλούδα απομόνωσης με πνευματικό περιστροφικό ενεργοποιητή Σειρά BUW6-DE-D2_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de mariposa con actuador rotativo neumático Serie BUW6-DE-D2_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Sulkuventtiili pneumaattisella kääntötoimilaitteella Sarja BUW6-DE-D2_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne papillon avec actionneur rotatif pneumatique Série BUW6-DE-D2_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Leptir ventil s pneumatskim rotacijskim pogonom Serija BUW6-DE-D2_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW6-DE-D2_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Üzembehelyezési útmutató_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW6-DE-D2_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW6-DE-D2_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Serranda di intercettazione con attuatore pneumatico rotativo Serie BUW6-DE-D2_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjeldventil med pneumatisk dreieaktuator Serie BUW6-DE-D2_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Vlinderklep met pneumatische draaiaandrijving Serie BUW6-DE-D2_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z napędem pneumatycznym Seria BUW6-DE-D2_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu_przepustnica z napędem pneumatycznym Seria BUW6-DE-D2_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_przepustnica z napędem pneumatycznym Seria BUW6-DE-D2_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă fluture cu actuator rotativ pneumatic serie BUW6-DE-D2_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW6-DE-D2_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW6-DE-D2_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW6-DE-D2_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa pneumatskim aktuatorom serije BUW6-DE-D2_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu_leptir ventil sa pneumatskim aktuatorom serije BUW6-DE-D2_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_leptir ventil sa pneumatskim aktuatorom serije BUW6-DE-D2_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjällventil med pneumatiskt vriddon Serie BUW6-DE-D2_SV.pdf
Download
BUW6-100-DUE-B x 1.0
Butterfly valve with bare shaft BUW6-100-DUE-B
Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Disc Zinc plated steel; Pressure range 0…16bar; Flange PN10/16/ANSI150
Add to Cart
Pneumatic actuator PAD085
PAD085 x 1.0
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
Add to Cart
Accessories
