BUW6-100-DYV-S22

Name: BUW6-100-DYV-S22
Brand: STASTO
SKU: BUW6-100-DYV-S22

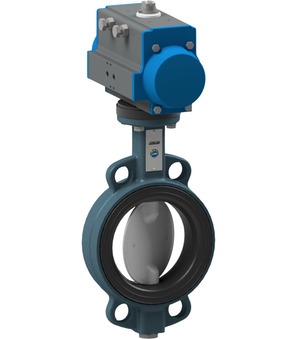

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Super duplex; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAS1255

Intrastat No.: 84818085
Country of origin: Italy
Weight: 20.26 Kg
Short Itemnumber: BUW6100DYVS22

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc super duplex; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAS1255

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BUW6-100-DYV-B x 1.0

BUW6-100-DYV-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Super duplex; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 100mm; Length 52mm

Add to Cart

PAS1255 x 1.0

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
