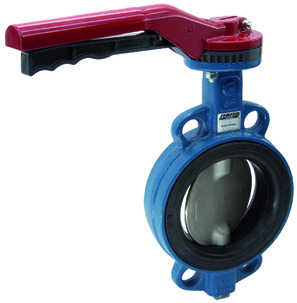

butterfly valve with hand lever BUW6-125-DSN-L-3C
Butterfly valve with hand lever BUW6-125-DSN-L
Butterfly valve with hand lever BUW6-125-DSN-L
266,19 €
266,19 €
Butterfly valve with hand lever BUW6-125-DSN-L-A
Butterfly valve with hand lever BUW6-125-DSN-L-A
284,95 €
284,95 €

butterfly valve with hand lever BUW6-125-DSN-L-3C

butterfly valve with hand lever series BUW6-DSN-L-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 125mm; length 56mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 0.65 Kg
Short Itemnumber:BUW6125DSNL3C
https://www.stasto.hu/web/image/product.template/237872/image_1920?unique=0ebfe25

butterfly valve with hand lever series BUW6-DSN-L-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 125mm; length 56mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

266,19 € 266.19 EUR 266,19 €

ár kérésre

  • DN
  • Length

This combination does not exist.

Availability:
Contact Us
DN 125 mm
Length 56 mm

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Butterfly valve with hand lever Series BUW6-DSN-L_EN.pdf
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s ruční pákou série BUW6-DSN-L_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Handhebel Serie BUW6-DSN-L_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pillangószelep kézikarral sorozat BUW6-DSN-L_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z dźwignią ręczną Seria BUW6-DSN-L_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa z ročico serija BUW6-DSN-L_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa ručnom polugom serije BUW6-DSN-L_SRLATIN.pdf
Download
BUW6-125-DSN-B-3C x 1.0
butterfly valve with bare shaft BUW6-125-DSN-B-3C
butterfly valve with bare shaft series BUW6-DSN-B-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 125mm; length 56mm; pressure range 0...16bar; nominal flange pressure PN10/16/ANSI150; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
Add to Cart
HLBU-125150-A
HLBU-125150-A x 1.0
HLBU-125150-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 125;150mm
Add to Cart
