BUW6-150-DSE-S22-A

Name: BUW6-150-DSE-S22-A
Brand: STASTO
SKU: BUW6-150-DSE-S22-A
Price: 1844.8 EUR
Availability: InStock

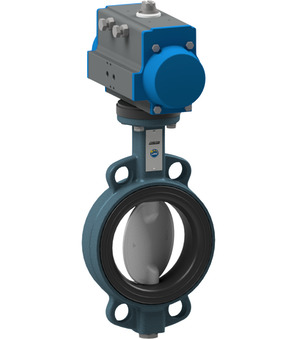

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAS1605; ATEX Ex II 2GD c TX;

Intrastat No.: 84818085
Country of origin: Italy
Weight: 38.27 Kg
Short Itemnumber: BUW6150DSES22A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 150mm; length 56mm; actuator PAS1605; ATEX Ex II 2GD c TX;

1.844,80 € 1844.8 EUR 1.844,80 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-150-DSE-S22 x 1.0

Butterfly valve with pneumatic actuator BUW6-150-DSE-S22

Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAS1605
