BUW6-150-DSE-X-A

Price.

419,40 €
Other materiales - A04 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Other materiales - A04
  5. Other materiales - A04
  6. BUW6-150-DSE-X-A
BUW6-150-DSE-X-A
BUW6-080-DSE-X-A
BUW6-080-DSE-X-A
289,90 €
289,90 €
SV33-20-30,3-60-0
SV33-20-30,3-60-0
2.538,90 €
2.538,90 €

BUW6-150-DSE-X-A

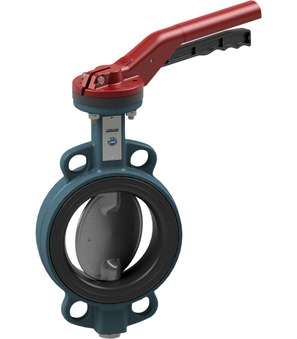

Butterfly valve with hand lever Series BUW6-DSE-X; ATEX II 2 G/D Ex h X; Hand lever Stainless steel; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.1 Kg
Short Itemnumber:BUW6150DSEXA
https://www.stasto.hu/web/image/product.template/239133/image_1920?unique=cad6a47

Butterfly valve with hand lever Series BUW6-DSE-X; ATEX II 2 G/D Ex h X; Hand lever Stainless steel; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm

419,40 € 419.4 EUR 419,40 €

ár kérésre

  • DN
  • Length
  • Design
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
DN 50 mm
Length 43 mm
design
Design ATEX
pressure
Pressure range 0...16 bar
No spare parts are available for this product.
