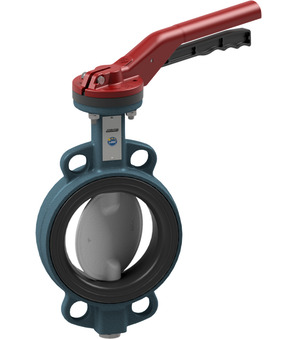

Butterfly valve with hand lever BUW6-150-DSV-L-MS-1MC07-PIZ001

Butterfly valve with hand lever BUW6-150-DSV-L-MS-1MC07-PIZ001

BUW6-150-DSV-L
butterfly valve with hand lever series BUW6-DSV-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 150mm; length 56mm
MS-1MC07-PIZ001
mounting bracket with 1 mechanical limit switch; NC/NO contact; for butterfly valve with hand lever DN40-DN300; F10/F07; mounted

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 9.57 Kg
Short Itemnumber: BUW6150DSVLMS1MC07PIZ001
https://www.stasto.hu/web/image/product.template/226537/image_1920?unique=f96ddcc

BUW6-150-DSV-L
butterfly valve with hand lever series BUW6-DSV-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 150mm; length 56mm
MS-1MC07-PIZ001
mounting bracket with 1 mechanical limit switch; NC/NO contact; for butterfly valve with hand lever DN40-DN300; F10/F07; mounted

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 150 mm
Length 56 mm
DN 150 mm
Length 56 mm
Butterfly valve with hand lever BUW6-150-DSV-L
BUW6-150-DSV-L x 1.0 Pcs
Butterfly valve with hand lever BUW6-150-DSV-L
Butterfly valve with hand lever Series BUW6-DSV-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 150mm; Length 56mm
MS-1MC07-PIZ001 x 1.0 Pcs
MS-1MC07-PIZ001
Mounting bracket With 1 mechanical limit switch; NC/NO contact; For butterfly valve with hand lever DN40-DN300; F10/F07; Mounted
