BUW6-150-DSW-D22

Name: BUW6-150-DSW-D22
Brand: STASTO
SKU: BUW6-150-DSW-D22
Price: 847.1 EUR
Availability: InStock

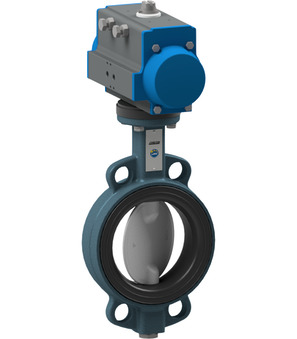

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM-White; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAD100

Intrastat No.: 84818085
Country of origin: Italy
Weight: 14.74 Kg
Short Itemnumber: BUW6150DSWD22

847,10 € 847.1 EUR 847,10 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-150-DSW-B x 1.0

Butterfly valve with bare shaft BUW6-150-DSW-B

Butterfly valve with bare shaft Series BUW1-DSW-B, BUW2-DSW-B, BUW6-DSW-B, BUWC-DSW-B, BUWV-DSW-B, BUWZ-DSW-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM White; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0...16bar; Flange PN10/16/ANSI150

Add to Cart

PAD100 x 1.0

Pneumatic actuator PAD100

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

Add to Cart

MFFALFUAL09733 x 1.0
