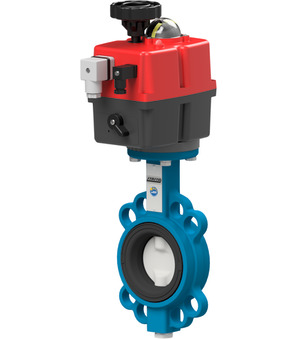

BUW6-200-DSE-072-02
Butterfly valve with electrical actuator Series BUW6-DSE-07; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Operating time 35s; Voltage 400V/50/60Hz; 3-phase
Intrastat No.: 84818085
Country of origin: France
Weight: 14.16 Kg
Short Itemnumber: BUW6200DSE07202
Country of origin: France
Weight: 14.16 Kg
Short Itemnumber: BUW6200DSE07202
butterfly valve with electrical actuator series BUW6-DSE-01; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 150mm; length 56mm; operating time 34s; voltage 24...240VAC / 24...135VDC
| dimension | |
|---|---|
| DN | 150 mm |
| Length | 56 mm |
| Electrical key figures | |
| Voltage | 24...240VAC / 24...135VDC |
| characteristics | |
| Operating time | 34 s |
No spare parts are available for this product.
