BUW6-250-CSN-G-A3E

Name: BUW6-250-CSN-G-A3E
SKU: BUW6-250-CSN-G-A3E
Price: 1555.3 EUR
Availability: InStock

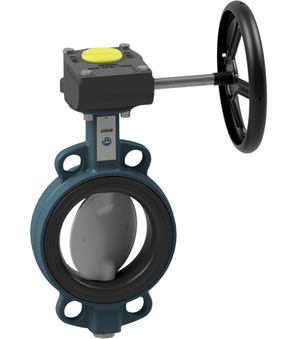

Butterfly valve with manual gear box Series BUW6-CSN-G-A3E; ATEX II 2GD Ex h X EPT 14; Wafer type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; DN 250mm; Length 68mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 31.928 Kg
Short Itemnumber:BUW6250CSNGA3E

butterfly valve with manual gear box series BUW6-CSN-G-A3E; ATEX II 2GD Ex h X EPT 14; wafer type; length according to EN558−1 R20; body steel epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -25...+100°C; pressure range 0...16bar; DN 250mm; length 68mm; notch impact test -29°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

1.555,30 € 1555.3 EUR 1.555,30 €

Design
- ATEX

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

Design

ATEX

BUW6-250-CSN-B-A3E x 1.0

BUW6-250-CSN-B-A3E

Butterfly valve with bare shaft Series BUW6-CSN-B-A3E; ATEX II 2GD Ex h X EPT 14; Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; DN 250mm; Length 68mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Add to Cart
