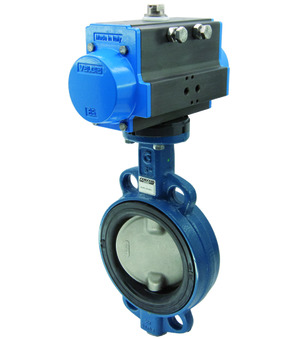

butterfly valve with pneumatic actuator ATEX II 2GD Ex hX; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc zinc plated ductile iron EN-GJS-400-15; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; double acting actuator; ATEX II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T85°C Db; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 300mm; length 78mm; actuator PAD160
butterfly valve with pneumatic actuator ATEX II 2GD Ex hX; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc zinc plated ductile iron EN-GJS-400-15; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; double acting actuator; ATEX II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T85°C Db; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 300mm; length 78mm; actuator PAD160
| dimension | |
|---|---|
| DN | 300 mm |
| Length | 78 mm |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...10 bar |
| characteristics | |
| Actuator | PAD160 |
