Butterfly valve with manual gear box Series BUW6-DSN-G Store

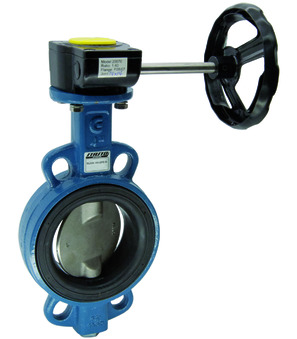

Butterfly valve with manual gear box BUW6-300-DSN-G

Butterfly valve with manual gear box Series BUW6-DSN-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 300mm; Length 78mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.868 Kg
Short Itemnumber:BUW6300DSNG

butterfly valve with manual gear box series BUW6-DSN-G; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 300mm; length 78mm

1.346,89 € 1346.89 EUR 1.346,89 €

DN
- 300 mm
Length
- 78 mm

This combination does not exist.

Availability:

In den Warenkorb

DN	300 mm
Length	78 mm

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

Assembly and Operating Instructions

Data sheet_Butterfly valve with manual gear box Series BUW6-DSN-G_EN.pdf

Download

ZIP

Datové listy

Datový list_uzavírací klapka s ruční převodovkou série BUW6-DSN-G_CS.pdf

Download

ZIP

Datenblätter

Datenblatt_Absperrklappe mit Handgetriebe Serie BUW6-DSN-G_DE.pdf

Download

ZIP

Adatlapok

Adatlap_pillangószelep kézi forgatókerékkel sorozat BUW6-DSN-G_HU.pdf

Download

ZIP

Karty katalogowe

Arkusz danych_przepustnica z przekładnią Seria BUW6-DSN-G_PL.pdf

Download

ZIP

Podatkovni listi

Podatkovni list_Zaporna loputa z ročnim polžastim pogonom serija BUW6-DSN-G_SL.pdf

Download

ZIP

Data Sheets

Tehnički list_leptir ventil sa ručnom menjačkom kutijom serije BUW6-DSN-G_SRLATIN.pdf

Download

BUW6-300-DSN-B x 1.0

Butterfly valve with bare shaft BUW6-300-DSN-B

Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 300mm; Length 78mm; Pressure range 0...16bar; Flange PN10/16/ANSI150

Add to Cart
