BUW6-300-DSV-S22-A

Name: BUW6-300-DSV-S22-A
Brand: STASTO
SKU: BUW6-300-DSV-S22-A
Price: 7216.3 EUR
Availability: InStock

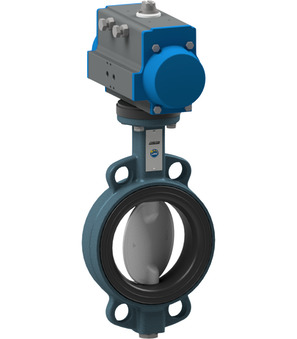

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 300mm; Length 78mm; Actuator PAS22704; ATEX Ex II 2GD c TX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 39.631 Kg
Short Itemnumber: BUW6300DSVS22A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 300mm; length 78mm; actuator PAS22704; ATEX Ex II 2GD c TX

7.216,30 € 7216.3 EUR 7.216,30 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-300-DSV-B-A x 1.0

BUW6-300-DSV-B-A

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 300mm; Length 78mm; ATEX Ex II 2GD c TX

Add to Cart

PAS2704 x 1.0

Pneumatic actuator PAS2704

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 270mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 810Nm

Add to Cart

APKTGB0014 x 1.0
