BUW6-500-SSES-D22

Name: BUW6-500-SSES-D22
Brand: STASTO
SKU: BUW6-500-SSES-D22
Price: 16463.6 EUR
Availability: InStock

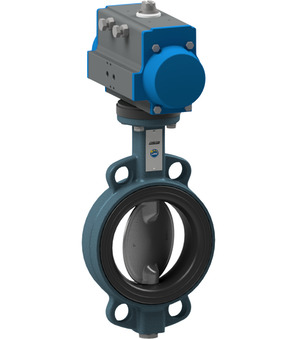

Butterfly valve with pneumatic actuator Series BUW6-SSES-D22; Wafer type; Length According to EN558−1 R20; Body, Disc And Shaft 1.4408; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 500mm; Length 127mm; Actuator PAD230

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6500SSESD22

butterfly valve with pneumatic actuator series BUW6-SSES-D22; wafer type; length according to EN558−1 R20; body, disc and shaft AISI 316; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 500mm; length 127mm; actuator PAD230

16.463,60 € 16463.6 EUR 16.463,60 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-500-SSES-B x 1.0

Butterfly valve with bare shaft BUW6-500-SSES-B

Butterfly valve with bare shaft Series BUW6-SSES-B; Wafer type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner EPDM; Medium temperature -10...+130°C; DN 500mm; Length 127mm; Pressure range 0…16bar; Flange PN10/16/ANSI150

Add to Cart

PAD230 x 1.0

Pneumatic actuator PAD230

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 1934Nm

Add to Cart

APKTGB0020 x 1.0
