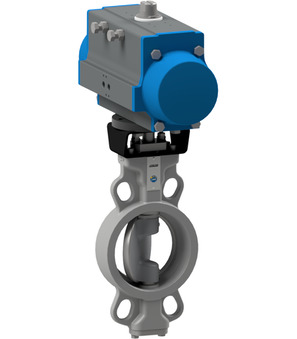

Butterfly valve with pneumatic actuator BUW9-050-CSRS-D42
Butterfly valve with pneumatic actuator BUW9-050-CSRS-D12
Butterfly valve with pneumatic actuator BUW9-050-CSRS-D12
981,60 €
981,60 €
Butterfly valve with pneumatic actuator BUW9-065-CSRS-D12
Butterfly valve with pneumatic actuator BUW9-065-CSRS-D12
1.035,80 €
1.035,80 €

Butterfly valve with pneumatic actuator BUW9-050-CSRS-D42

Butterfly valve with pneumatic actuator Series BUW9-CSRS-D; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C; DN 50mm; Length 43mm; Pressure range 0…25bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.55 Kg
Short Itemnumber:BUW9050CSRSD42
https://www.stasto.hu/web/image/product.template/124578/image_1920?unique=422d5c2

butterfly valve with pneumatic actuator series BUW9-CSRS-D; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 50mm; length 43mm; pressure range 0…25bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD085

1.002,50 € 1002.5 EUR 1.002,50 €

ár kérésre

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us
dimension
DN 50 mm
Length 43 mm
Flange PN10/16/25, ANSI150
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD085
BUW9-050-CSRS-B x 1.0
Butterfly valve with bare shaft BUW9-050-CSRS-B
Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Nominal flange pressure PN10/16/25/ANSI150
Add to Cart
Pneumatic actuator PAD085
PAD085 x 1.0
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
