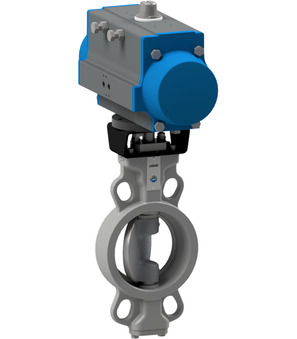

Butterfly valve with pneumatic actuator BUW9-065-CSIS-D42

Butterfly valve with pneumatic actuator BUW9-065-CSIS-D42

Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 65mm; Length 46mm; Actuator PAD100-H

Absperrklappe mit Druckluftdrehantrieb Serie BUW9-CSIS-D4
Absperrklappe mit Druckluftdrehantrieb Serie BUW9-CSIS-D4
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 9.65 Kg
Short Itemnumber: BUW9065CSISD42
https://www.stasto.hu/web/image/product.template/88484/image_1920?unique=406472e

Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 65mm; Length 46mm; Actuator PAD100-H

1.304,90 € 1304.9 EUR 1.304,90 €

ár kérésre

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 65 mm
Length 46 mm
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
DN 65 mm
Length 46 mm
Brand STASTO

BUW9-065-CSIS-D42

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
BUW9-065-CSIS-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-065-CSIS-B
Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 65mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150
Pneumatic actuator PAD100-H
PAD100-H x 1.0 Pcs
Pneumatic actuator PAD100-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
