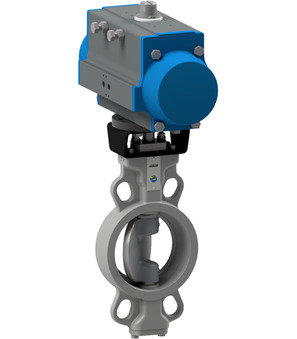

Butterfly valve with pneumatic actuator BUW9-100-CSRS-S12

Name: Butterfly valve with pneumatic actuator BUW9-100-CSRS-S12
Brand: STASTO
SKU: BUW9-100-CSRS-S12
Price: 1823.8 EUR
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW9-CSRS-S; Wafer type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS1255

Intrastat No.: 84818085
Country of origin: Italy
Weight: 22.25 Kg
Short Itemnumber: BUW9100CSRSS12

butterfly valve with pneumatic actuator series BUW9-CSRS-S; wafer type; double eccentric; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 100mm; length 52mm; pressure range 0…16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1255

1.823,80 € 1823.8 EUR 1.823,80 €

DN
- 100 mm
Length
- 52 mm
Flange
- PN10/16/25, ANSI150
Pressure range
- 0...16 bar
Actuator
- PAS1255

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	100 mm
Length	52 mm
Flange	PN10/16/25, ANSI150
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS1255

BUW9-100-CSRS-B x 1.0

Butterfly valve with bare shaft BUW9-100-CSRS-B

Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 100mm; Length 52mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart

PAS1255 x 1.0

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
