BUW9-100-SSIS-B-A3C
x 1.0 Pcs

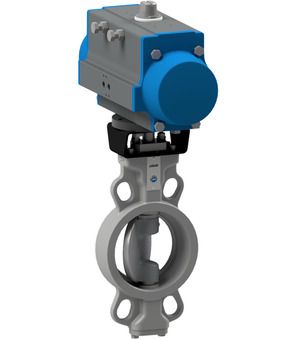

butterfly valve with pneumatic actuator; ATEX II 2 G/D Ex h X; wafer type; double eccentric; length according to EN558−1R20; housing, disc AISI 316; shaft AISI 630; seat Inconel 625; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+425°C; pressure range 0...25bar; DN 100mm; length 52mm; nominal flange pressure PN10/16/25/ANSI150; actuator PAD115-H; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW9100SSISD42A3C
Country of origin: Italy
Short Itemnumber: BUW9100SSISD42A3C
butterfly valve with pneumatic actuator; ATEX II 2 G/D Ex h X; wafer type; double eccentric; length according to EN558−1R20; housing, disc AISI 316; shaft AISI 630; seat Inconel 625; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+425°C; pressure range 0...25bar; DN 100mm; length 52mm; nominal flange pressure PN10/16/25/ANSI150; actuator PAD115-H; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
Technical specifications
| Pressure range | 0...25bar |
|---|---|
| DN | 100 mm |
| Length | 52 mm |
| Flange | PN10/16/25, ANSI150 |
| Pressure range | 0...25bar |
| DN | 100 mm |
| Length | 52 mm |
| Flange | PN10/16/25, ANSI150 |
| Design | ATEX |
PAD115-H
x 1.0 Pcs
Pneumatic actuator PAD115-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm
