BUW9-150-SSIS-T22-A

Name: BUW9-150-SSIS-T22-A
Brand: STASTO
SKU: BUW9-150-SSIS-T22-A

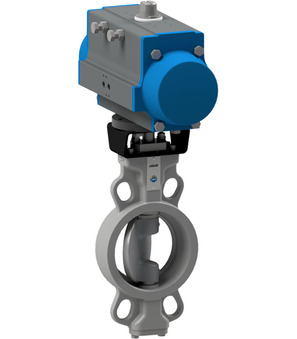

Butterfly valve with pneumatic actuator; NO; ATEX II 2 GD Ex h X; Wafer type; Length According to EN558−1R20; Body Steel 1.4408; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 150mm; Length 56mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS2005-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 71.4 Kg
Short Itemnumber: BUW9150SSIST22A

butterfly valve with pneumatic actuator; NO; ATEX II 2 GD Ex h X; wafer type; length according to EN558−1R20; body steel AISI 316; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS2005-H

On request

Design
- ATEX

This combination does not exist.

Availability:

Specifications
Spare Parts

Design

ATEX

BUW9-150-SSIS-T22 x 1.0

BUW9-150-SSIS-T22

Butterfly valve with pneumatic actuator; NO; Wafer type; Length According to EN558−1R20; Body Steel 1.4408; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 150mm; Length 56mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS2005-H
