BUW9-200-CSIQ-D22-01

Name: BUW9-200-CSIQ-D22-01
Brand: STASTO
SKU: BUW9-200-CSIQ-D22-01
Price: 3345.3 EUR
Availability: InStock

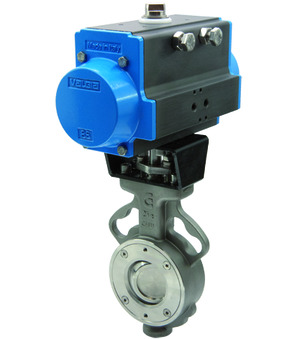

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 200mm; Length 61mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD140-HB; Actuator mounted 90° twisted

Intrastat No.: 84818085
Country of origin: Italy
Weight: 38.44 Kg
Short Itemnumber: BUW9200CSIQD2201

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 200mm; length 61mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD140-HB; actuator mounted 90° twisted

3.345,30 € 3345.3 EUR 3.345,30 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW9-200-CSIQ-B x 1.0

Butterfly valve with bare shaft BUW9-200-CSIQ-B

Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart

PAD140-H x 1.0

Pneumatic actuator PAD140-H

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 451Nm

Add to Cart

APKTGB0099 x 1.0
