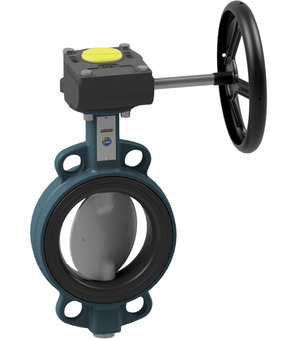

BUW8-150-CSE-G-3C

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16/25/ANSI150; Medium temperature -10...+130°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 11.814 Kg
Short Itemnumber:BUWV150CSEG3C

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN16/25/ANSI150; medium temperature -10...+130°C; pressure range 0...25bar; DN 150mm; length 56mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

646,40 € 646.4 EUR 646,40 €

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

No Specifications

BUWV-150-CSE-B-3C x 1.0

BUWV-150-CSE-B-3C

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16/25/ANSI150; Medium temperature -10...+130°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
